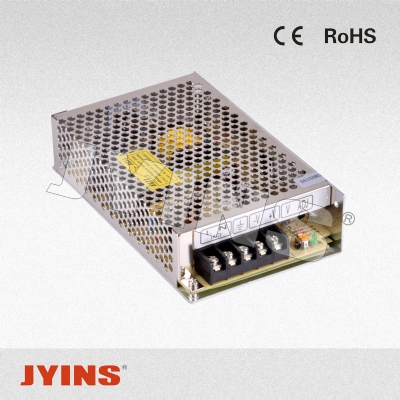

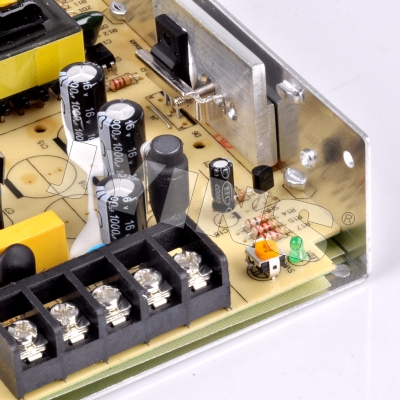

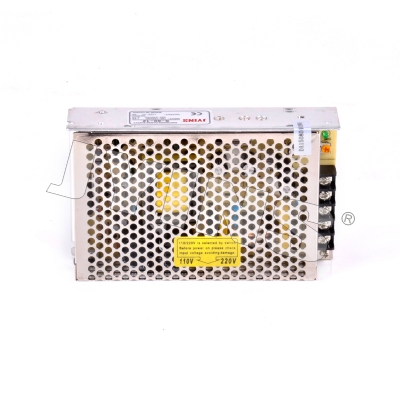

S-60W

You are here: Home >> Industries & Products >> Switching power supply series >> Single output series >> S-60W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High efficiency, high reliability and low cost

Switch input voltage range choice

100% full load and machine test

Protection characteristics: short circuit/overload

Air cooling

Working frequency 37 KHz

One year warranty

Size:159*97*38mm(L*W*H)

Technical parameter:

model		S-60-5	S-60-12	S-60-15	S-60-24	S-60-48
output	Dc output voltage	5V	12V	15V	24V	48V
	Output voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated output current	12A	5A	4A	2.5A	1.3A
	Output current range	0-12A	0-5A	0-4A	0-2.5A	0-1.3A
	Output power	60W	60W	60W	60W	62.4W
	Ripple and the noise	120mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p
	Dc voltage adjustable scope	+10, -5%	±10%	±10%	±10%	±10%
	Start, rise, keep time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC
input	Input voltage range	85～264 VAC 47～63 Hz；120～370VDC
	Exchange input current	2A/115 V 1A/ 230 V
	efficiency	73%	76%	77%	79%	79%
	Impulse current	冷启动电流30A/115VAC 60A/230VAC
	Leakage current	＜3.5 mA/240VAC
Protection characteristics	Overload protection	115%～165%
		Protection way: current limiting, automatic recovery
	Over-voltage protection	115%～135%
		Protection way: hiccups, auto recovery mode
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC
	Insulation resistance	Between the input and output, the input and output, and ground:
		100M Ohms/500VDC
standard	Safety standards	Accord with
		UL1012, UL1950，TUV EN60950
	EMC standards	Accord with
		EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5，6，8，11；ENV50204，EN55024
other	weight	0.51Kg
	packaging	30pcs/15.8Kg/0.99CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
	5. Specific output current see output drop forehead curve

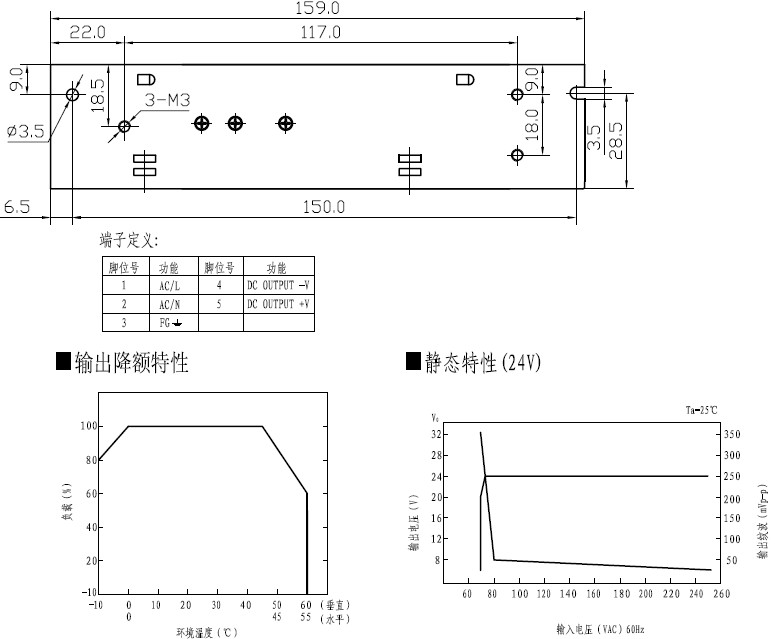

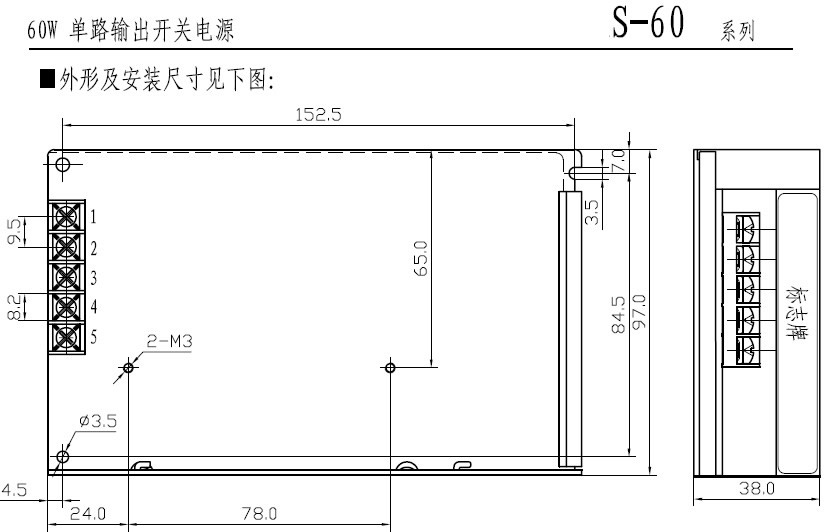

Installation dimensions:
