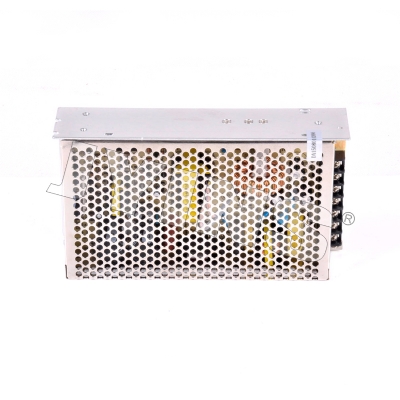

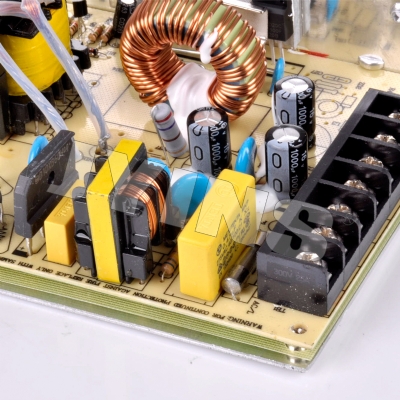

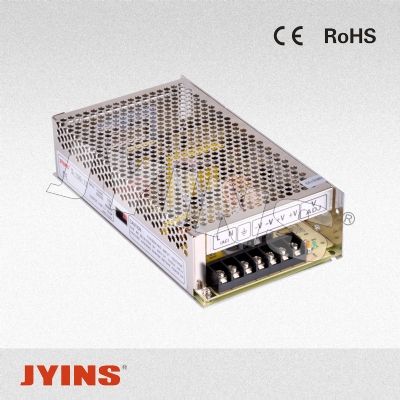

S-150W

You are here: Home >> Industries & Products >> Switching power supply series >> Single output series >> S-150W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High efficiency, high reliability

Switch input voltage range choice

100% full load and machine test

Protection characteristics: short circuit/overload/pressure

Air cooling

Working frequency 25 KHz

1 year warranty

Size:199*110*50mm（L*W*H）

Technical parameter:

model		S-150-5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
output	Dc output voltage	5V	9V	12V	13.5V	15V	24V	27V	48V
	Output voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Rated output current	30A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
	Output current range	0-30A	0-16.7A	0-12.5A	0-11.2A	0-10A	0-6.5A	0-5.6A	0-3.2A
	Output power	150W	150.3W	150W	151.2W	150W	156W	151.2W	153.6W
	Ripple and the noise	150mVp-p	180mVp-p	180mVp-p	180mVp-p	180mVp-p	240mVp-p	240mVp-p	240mVp-p
	Dc voltage adjustable scope	±10%	-12%，+15%	-12%，+10%	-12%，+11%	±10%	-12%，+16%	-12%，+11%	±10%
	Start, rise, keep time	100ms,50ms,20ms Loaded with
input	Input voltage range	88～132 VAC/176～264VAC 47~63Hz，The switch choice
		248~370VDC
	Exchange input current	3.2A/115 V 1.6A/ 230 V
	efficiency	78%	80%	82%	83%	84%	85%	86%	87%
	Impulse current	Cold start current
		35A/230VAC
	Leakage current	＜3.5mA/240VAC
protection characteristics	Overload protection	110%～160%
		Protection way: cut output, restart
	Overvoltage protection	115%~135%
		Protection way: cut output, restart
environment	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the input and output, and ground:
		100M Ohms/500VDC
Accord with standard	Safety standards	Accord with
		UL1012, UL1950，TUV EN60950
	EMC standard	Accord with
		EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5，6，8，11；ENV50204，EN55024
other	weight	0.8Kg
	packaging	22pcs/18Kg/1.22CUFT
note	All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
	Specific output current see output drop forehead curve.

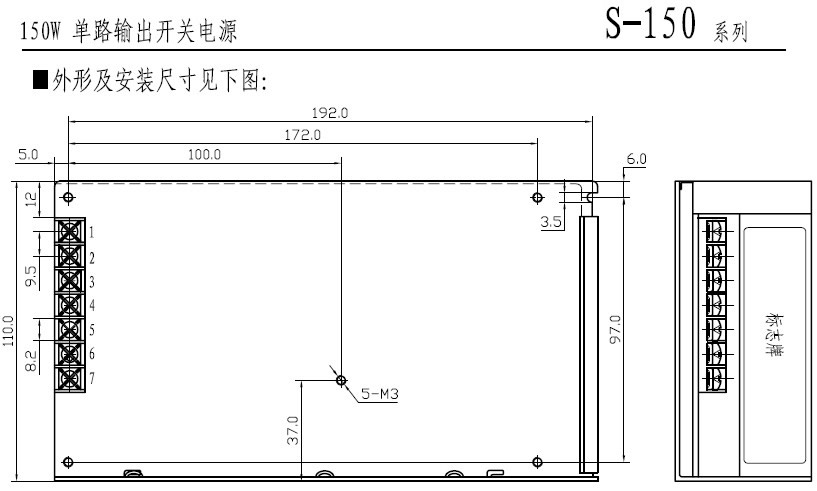

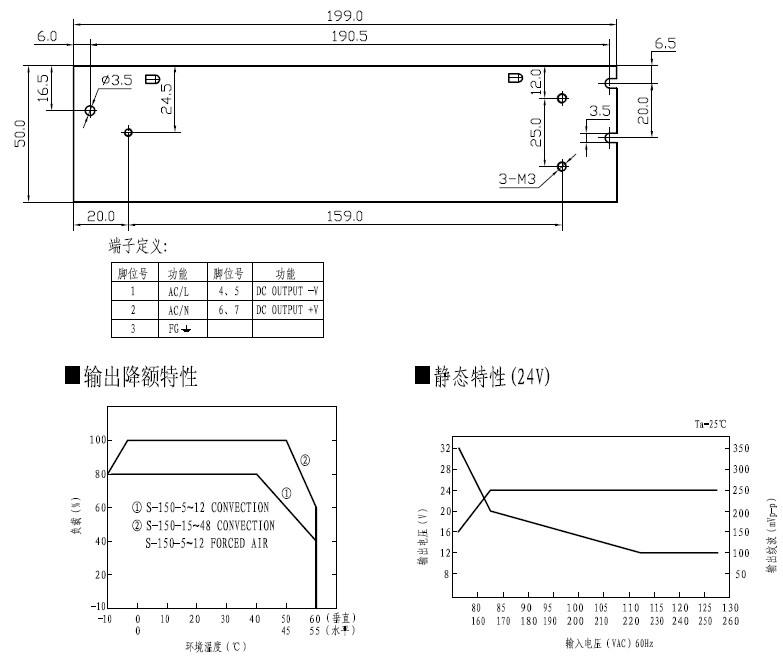

Installation dimensions:
