Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Working frequency 37 KHz
One year warranty

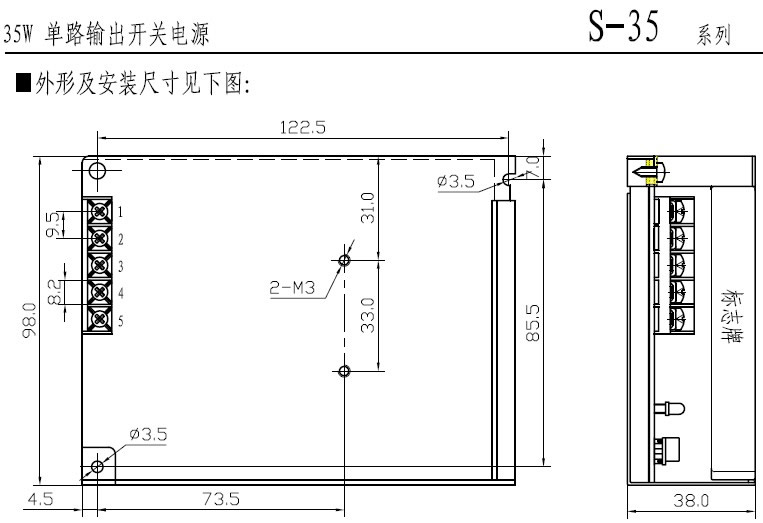

Size: 129*98*38mm (L * W * H)
| Model | S-35-5 | S-35-9 | S-35-12 | S-35-15 | S-35-24 | |
| OUTPUT | Dc output voltage | 5V | 9V | 12V | 15V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 7A | 3.6A | 3A | 2.4A | 1.5A | |
| Output current range | 0-7A | 0-3.6A | 0-3A | 0-2.4A | 0-1.5A | |
| Output power | 35W | 32.4W | 36W | 36W | 36W | |
| Ripple and the noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Dc voltage adjustable scope | +10,-5% | ±10% | ±10% | ±10% | ±10% | |
| Start, rise, keep time | 200ms,100ms,30ms Loaded with | |||||
| INPUT | Input voltage range | 85～132 VAC/170～264VAC 47～63 Hz；选择 240～370VDC | ||||
| Exchange input current | 0.8 A/115 V 0.45A/ 230 V | |||||
| efficiency | 70% | 72% | 76% | 78% | 78% | |
| Impulse current | 冷启动电流18A/115V 36A/230V | |||||
| Leakage current | ＜2mA/240VAC | |||||
| PROTECTION | Overload protection | 110%～160% | ||||
| Protection way: current limiting, automatic recovery | ||||||
| ENVIRONMENT | Working temperature, humidity | -10℃～+60℃；20%～90 %RH | ||||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | |||||
| Vibrate resistance | 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis | |||||
| SAFETY | Compression sex | Between input and output | ||||
| ：1.5KVAC Input and to | ||||||
| ：1.5KVAC Output and to | ||||||
| ：0.5KVAC | ||||||
| Insulation resistance | Between the input and output, the input and output, and the earth | |||||
| ： 100M Ohms/500VDC | ||||||
| STANDARD | Safety standards | Accord with | ||||
| UL1012 | ||||||
| EMC standards | Design refer to FCC Part15 J Conduction Class B | |||||
| OTHERS | weight | 0.41Kg | ||||
| packaging | 45pcs/18.8Kg/1.22CUFT | |||||
| NOTE | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | |||||
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | ||||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | ||||||

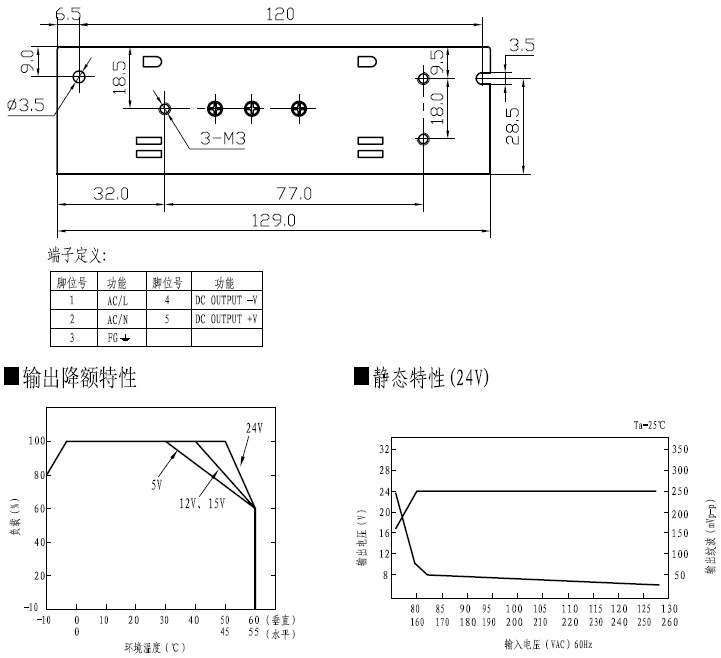

| 4. Specific output current see output drop forehead curve. | ||||||
