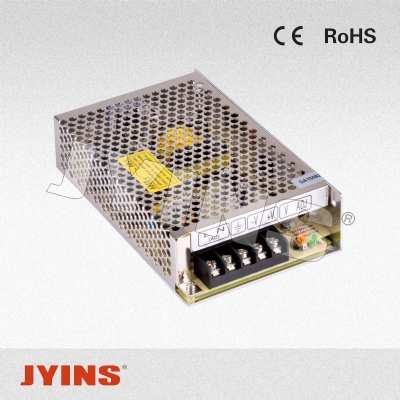

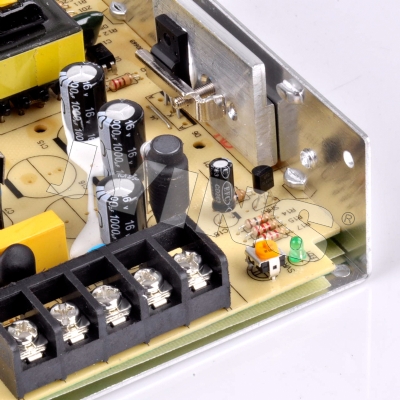

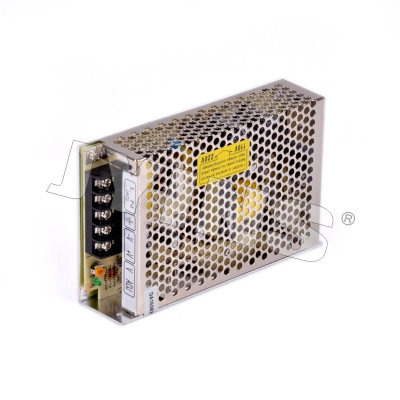

S-50W

You are here: Home >> Industries & Products >> Switching power supply series >> Single output series >> S-50W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

High efficiency, high reliability and low cost

Switch input voltage range choice

100% full load and machine test

Protection characteristics: short circuit/overload

Air cooling

Working frequency 37 KHz

One year warranty

Size: 159*97*38mm(L*W*H)

Technical parameter:

Model		S-50-5	S-50-12	S-50-15	S-50-24	S-50-48
OUTPUT	DC Voltage	5V	12V	15V	24V	48V
	Voltage Tolerance	±2%	±1%	±1%	±1%	±1%
	Rated Current	10A	4.2A	3.4A	2.1A	1A
	Current Range	0-10A	0-4.2A	0-3.4A	0-2.1A	0-1A
	Rated Power	50W	50.4W	51W	50.4W	48W
	Ripple & Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	DC Adjustment Range	+10,-5%	±10%	±10%	±10%	±10%
	Setup, Rise, Hold Time	200ms,100ms,20ms Loaded with
INPUT	Voltage Range	85～132 VAC/170～264VAC 47～63 Hz；选择240～370VDC
	AC Curren	1.3A/115 V 0.65A/ 230 V
	Efficiency	71%	78%	78%	82%	84%
	Inrush Current	Cold start current
		18A/115V 36A/230V
	Leakage Current	＜1 mA/240VAC
PROTECTION	Overload protection	110%～160%
		Protection way: current limiting, automatic recovery
ENVIRONMENT	Working temperature, humidity	-10℃～+60℃；20%～90 %RH
	Keep temperature, humidity	-20℃～+85℃；10%～95 %RH
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
SAFETY	Compression sex	Input/output: 1.5 KVAC input and between
		：1.5KVAC Output and to
		：0.5KVAC
	Insulation resistance	Between the input and output, the input and output, and ground:
		100M Ohms/500VDC
STANDARD	Safety standards	符合UL1012
	EMC standards	Design refer to FCC Part15 J Conduction Class B
OTHERS	weight	0.51Kg
	packaging	30pcs/15.8Kg/0.99CUFT
NOTE	All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
	Specific output current see output drop forehead curve.

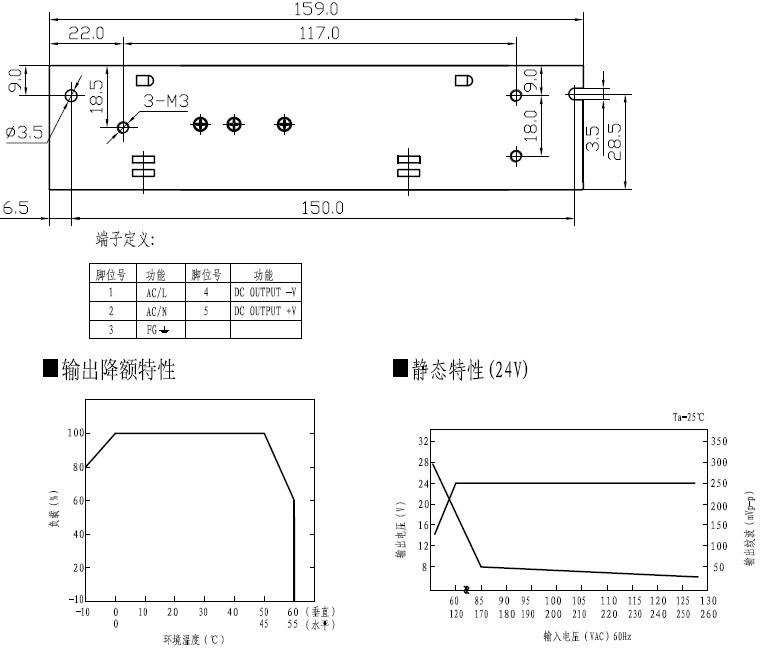

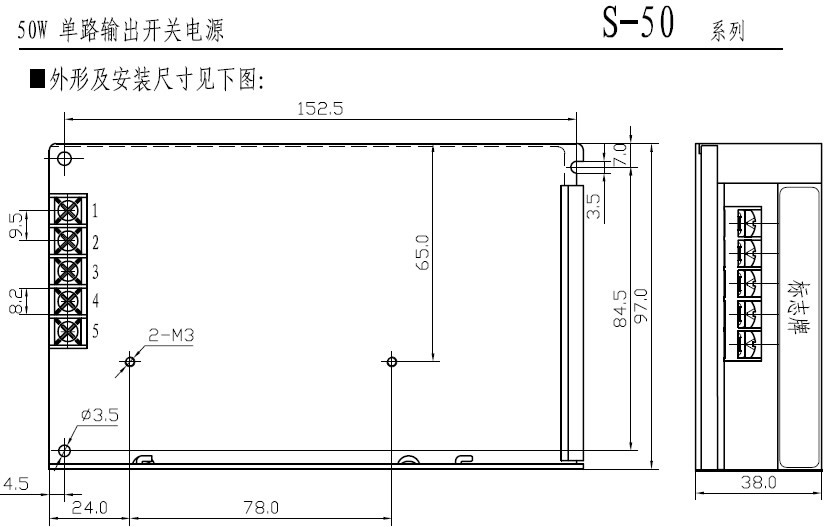

Installation dimensions:
