S-15W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

Installation dimensions:High efficiency, high reliability and low cost

Switch input voltage range choice

100% full load and machine test

Protection characteristics: short circuit/overload

Air cooling

Working frequency 37 KHz

One year warranty

Size: 99 * 97 * 36 mm (L * W * H)

Technical parameter:

model		S-15-5	S-15-12	S-15-24
OUTPUT	DC Voltage	5V	12V	24V
	Voltage Tolerance	±2%	±1%	±1%
	Rated Current	3A	1.3A	0.7A
	Current Range	0-3A	0-1.3A	0-0.7A
	Rated Power	15W	15.6W	16.8W
	Ripple & Noise	50mVp-p	50mVp-p	100mVp-p
	DC Adjustment Range	+10,-5%	±10%	±10%
	Setup, Rise, Hold Time	200ms,100ms,30ms 满载
INPUT	Voltage Range	85～132 VAC / 170～264 VAC 47～63 Hz选择240～370VDC
	AC Curren	0.5A/115V 0.25A/230V
	Efficiency	65%	68%	72%
	Inrush Current	Cold start 15A/115VAC 30A/230VAC
	Leakage Current	＜0.5 mA/240VAC
PROTECTION	Over Load	110%～160% Cut off output . Fold back current limiting, recovers automatically
ENVIRONMENT	Working Temp., Humidity	-10℃～+60℃；20%～90 %RH
	Storage Temp., Humidity	-20℃～+85℃；10%～95%RH
	Vibration	10～500Hz，2G 10min./1cycle，period for 60min，each alongX,Y,Z axe
SAFETY	Withstand Voltage	I/P-O/P：1.5KVACI/P-FG：1.5KVACO/P-FG：0.5KVA
	Isolation Resistance	I/P-O/P，I/P-FG，O/P-FG：500VDC/100M
STANDARD	Safety Standard	Design refer to UL1012
	EMC Standard	Design refer to FCC PART15J CLASS B
OTHERS	Weight	0.3Kg
	Packing	45pcs/15Kg/0.9CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
	3.Tolerance: includes set up tolerance, line regulation and load regulation.

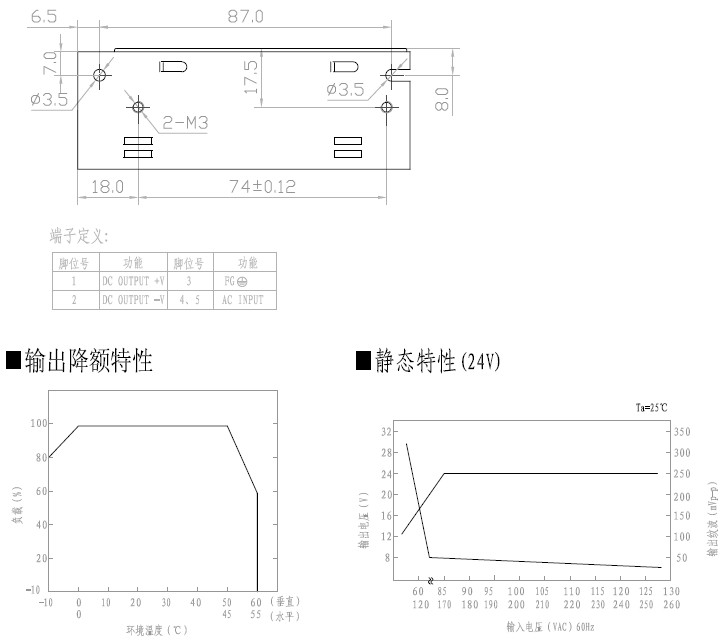

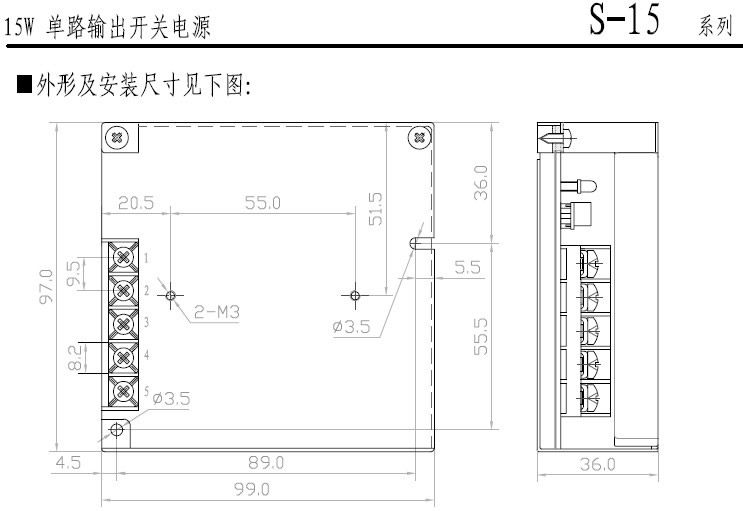

Installation dimensions:
