Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Working frequency 24 KHz
1 year warranty

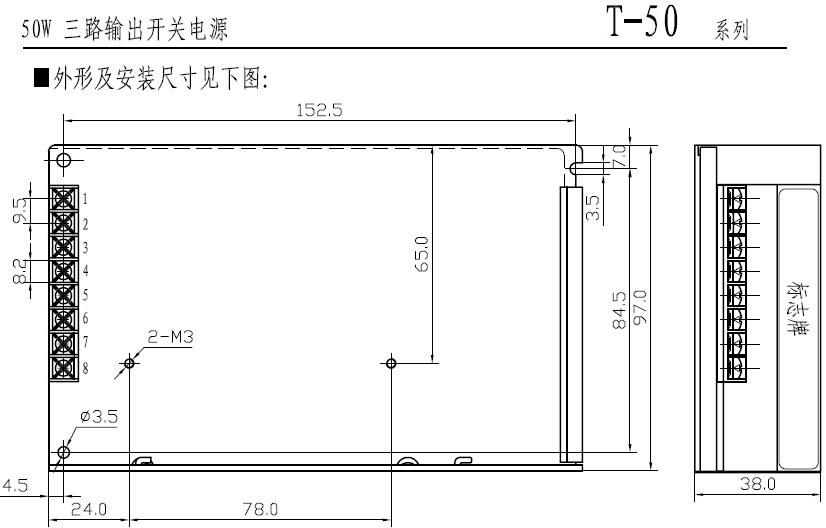

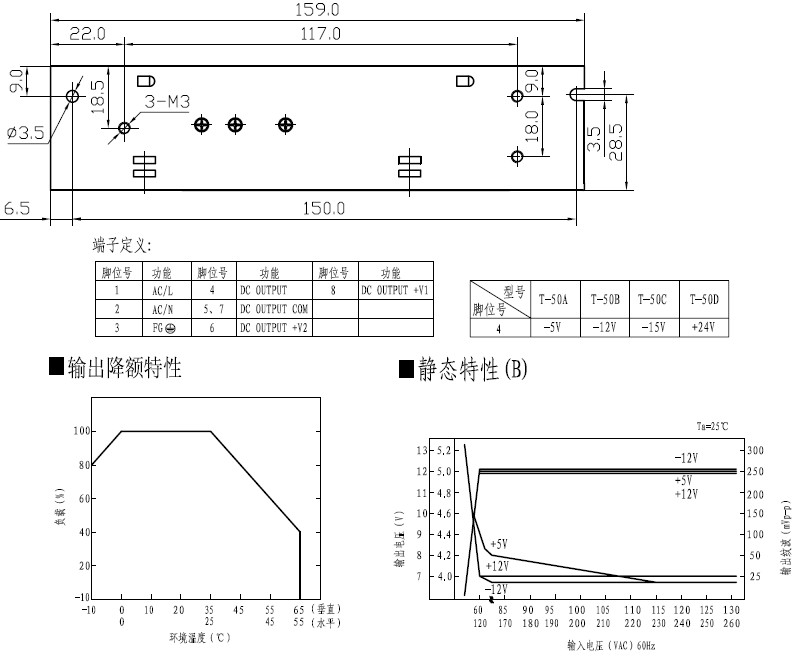

Size: 159 * 97 * 38 mm (L * W * H)
| model | T-50A | T-50B | T-50C | T-50D | |||||||||
| CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | ||
| output | Dc output voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V |
| Output voltage tolerance | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±5% | ±5% | ±2% | ±6% | ±6% | |
| Rated output current | 7A | 1A | 1A | 5A | 1A | 1A | 4A | 1A | 1A | 3A | 1A | 1A | |
| Output current range | 0.6-7A | 0.2-1A | 0.2-1A | 0.6-5A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1A | 0.2-1A | 0.6-4A | 0.2-1.2A | 0.2-1.2A | |
| Output power | 52W | 49W | 50W | 51W | |||||||||
| Ripple and the noise | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 100mV | 50mV | 120mV | 120mV | |
| Dc voltage adjustable scope | CH1： -5%，+10% | ||||||||||||
| Start, rise, keep time | 200ms,100ms,16ms Loaded with | ||||||||||||
| input | Input voltage range | 85～132 VAC / 170～264 VAC47-63Hz；choose | |||||||||||
| 240～370VDC | |||||||||||||
| Exchange input current | 1.6A/115 V0.8A/ 230 V | ||||||||||||
| efficiency | 66% | 69% | 71% | 72% | |||||||||
| Impulse current | Cold start current | ||||||||||||
| 20A/115V40A/230V | |||||||||||||
| Leakage current | ＜0.5mA/240VAC | ||||||||||||
| Protection characteristics | Overload protection | 105%～150% | |||||||||||
| Protection way: cut off output turn-back type automatic recovery, | |||||||||||||
| environment | Working temperature, humidity | -10℃～+60℃；20%～90 %RH | |||||||||||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | ||||||||||||
| Vibrate resistance | 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis | ||||||||||||
| security | Compression sex | Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5: | |||||||||||
| 0.5KVAC | |||||||||||||
| Insulation resistance | Between the input and output, the input and output, and ground: | ||||||||||||
| 100M Ohms/500VDC | |||||||||||||
| Complies with the standards | Safety standards | Accord with | |||||||||||
| UL1012 | |||||||||||||
| other | weight | 0.54Kg | |||||||||||
| packaging | 24pcs/14Kg/0.75CUFT | ||||||||||||
| note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | ||||||||||||
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||||||||||
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | |||||||||||||
