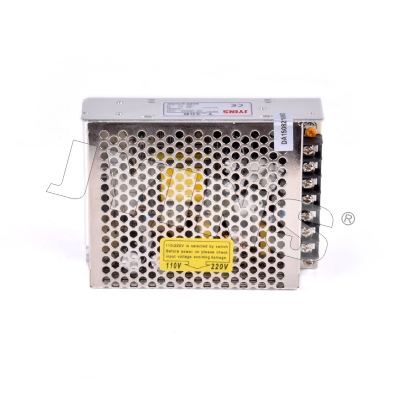

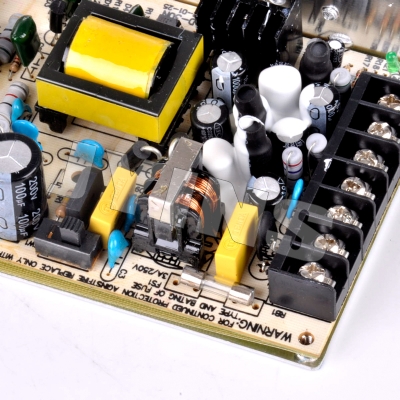

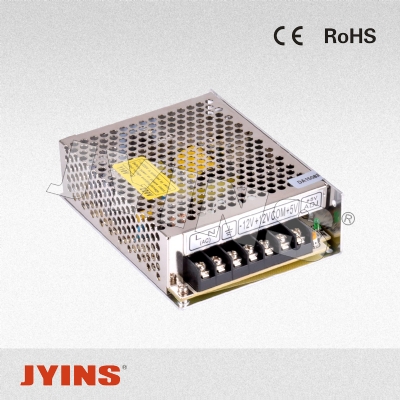

T-30W

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 Features:

High efficiency, high reliability and low cost

Switch input voltage range choice

Protection characteristics: short circuit/overload

Has the boot display (light emitting diode (led)

Air cooling

Working frequency 23 KHz

1 year warranty

Size: 129 * 98 * 38 mm (L * W * H)



Technical parameter:
model T-30A T-30B
CH1 CH2 CH3 CH1 CH2 CH3
output Dc output voltage 5V 12V -5V 5V 12V -12V
Output voltage tolerance ±2% +2,-6% +2,-10% ±2% +2,-6% ±6%
Rated output current 3A 1A 0.5A 3A 1A 0.5A
Output current range 0.5-3A 0.1-1A 0.1-0.5A 0.5-3A 0.1-1A 0.1-0.5A
Output power 30W 33W
Ripple and the noise 50mVp-p 100mVp-p 50mVp-p 50mVp-p 100mVp-p 100mVp-p
Dc voltage adjustable scope CH1: -5%,+10%
Start, rise, keep time 200ms,100ms,30ms   Loaded with
input Input voltage range 85~132 VAC/170~264VAC 47~63 Hz;The switch choice
240~370VDC
Exchange input current 0.8A/115 V 0.45A/ 230 V
efficiency 70% 72%
Impulse current Cold start current
18A/115V 36A/230V
Leakage current <0.75mA/240VAC
protection Overload protection 105%~150%
characteristics Protection way: cut output, automatic recovery
environment Working temperature, humidity -10℃~+60℃;20%~90 %RH
Keep temperature, humidity -20℃~+85℃;10%~95 %RH
Vibrate resistance 10~500Hz,2G 10min.1 cycle time, 60 minutes, the axis
security Compression sex Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:
KVAC 输出与地:0.5KVAC
Insulation resistance Between the input and output, the input and output, and ground:
100M Ohms/500VDC
Accord with standard Safety standards Accord with
UL1012
EMC standard Design refer to FCC Part15 J Conduction Class A
other weight 0.42Kg
packaging 45pcs/19.4Kg/1.22CUFT
note 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
4. Specific output current see output drop forehead curve.

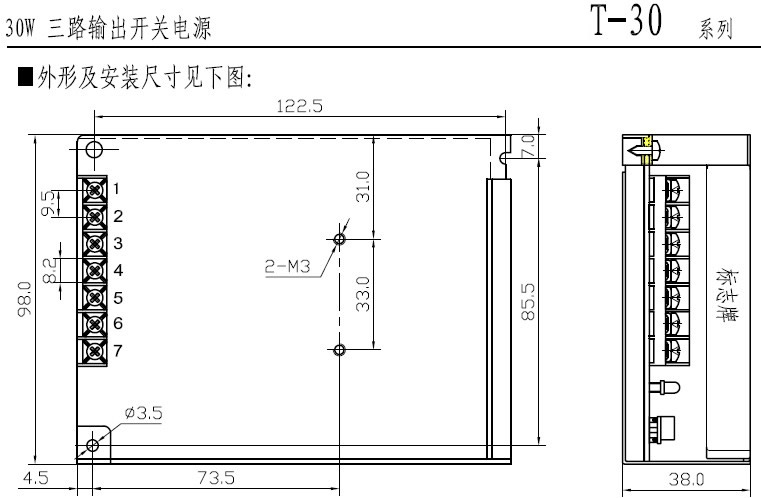

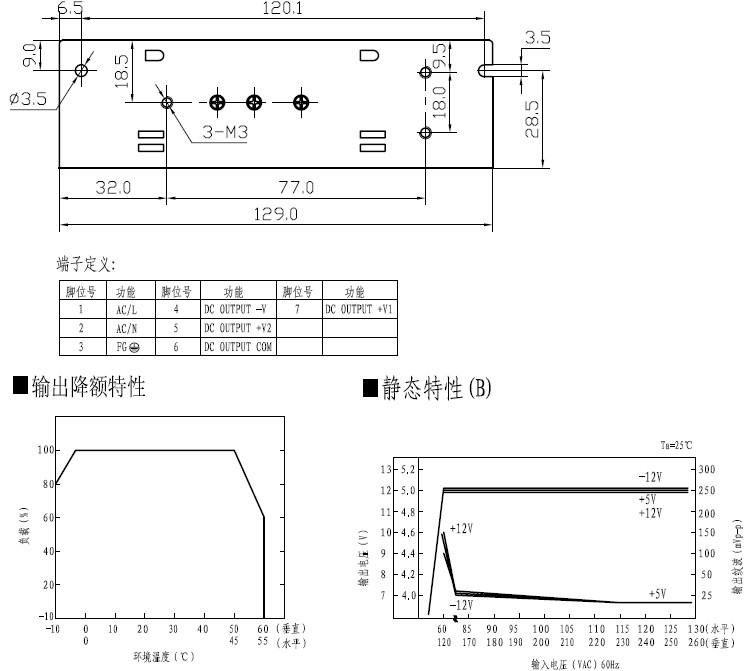

Installation dimensions:
