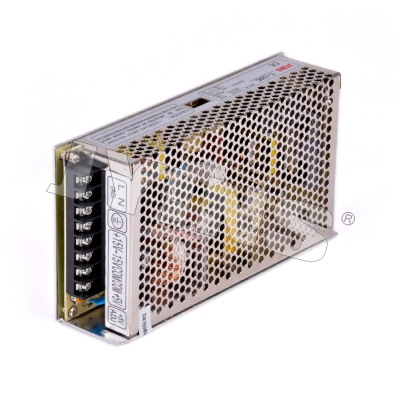

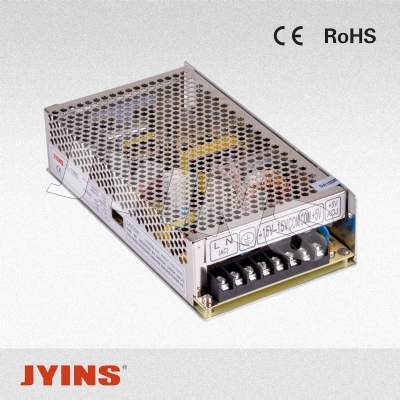

Features:
The low price, high reliability
105 ℃ output capacitors
For AC power supply input global
Soft start current, effectively reduce the AC input impact
A short circuit protection and overload protection
Small volume, light weight
100% full load and machine test

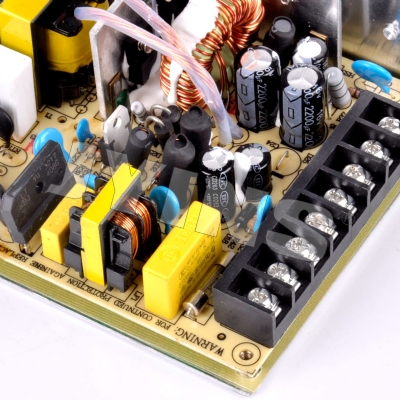

EMI filters is installed inside, the ripple minimum
model | T-100C | T-100D | ||||
CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
Dc output voltage | 5V | 15V | -15V | 5V | 12V | 24V |
Output voltage tolerance | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% |
Rated output current | 10A | 2.5A | 1A | 6A | 2A | 2A |
Output current range | 2-12A | 0.2-2.5A | 0.1-1A | 2-10A | 0.1-2A | 0.2-2A |
Ripple and the noise | 80mVp-p | 150mVp-p | 150mVp-p | 80mVp-p | 150mVp-p | 150mVp-p |
Into line stability | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% |
Load stability | ±1% | ±5% | ±5% | ±1% | ±5% | ±5% |
Dc power output | 100W | 102W | ||||
efficiency | 77% | 79% | ||||
Dc voltage adjustable scope | CH1;+10,-5% | CH1;+10,-5% | ||||
Input voltage range | 85-132VAC/170-264VAC The switch choice | |||||
47-63Hz;240-370VDC | ||||||
Input current | 2.5A/115V 1.25A/230V | |||||
Impulse current | 冷启动电流 30A/115V 60A/230V | |||||
Leakage current | <0.5mA/240VAC | |||||
Overload protection | 105%-150%M Type: current limiting reset: automatic recovery | |||||
Overvoltage protection | ............ | |||||
High temperature protection | ............ | |||||
Temperature coefficient | ±0.03%/℃(0-50℃) ON+5V | |||||
Start, rise, keep time | 200ms,50ms,16ms | |||||
Vibrate resistance | 10-500Hz,2G 10min,/1 cycle time, 60 points, the axis | |||||
Compression sex | Input/output: 1.5 KvAC input and between shell: 1.5 KvAC output and the shell: 0.5 KvAC | |||||
Isolating resistor | Between the input and output, the input and output and the shell: shell, | |||||
:500VDC/100MΩ | ||||||
Working temperature, humidity | -10℃-+60℃(Reference output characteristics graph | |||||
),20%-90%RH | ||||||
Storage temperature, humidity | -20℃-+85℃,10%-95RH | |||||

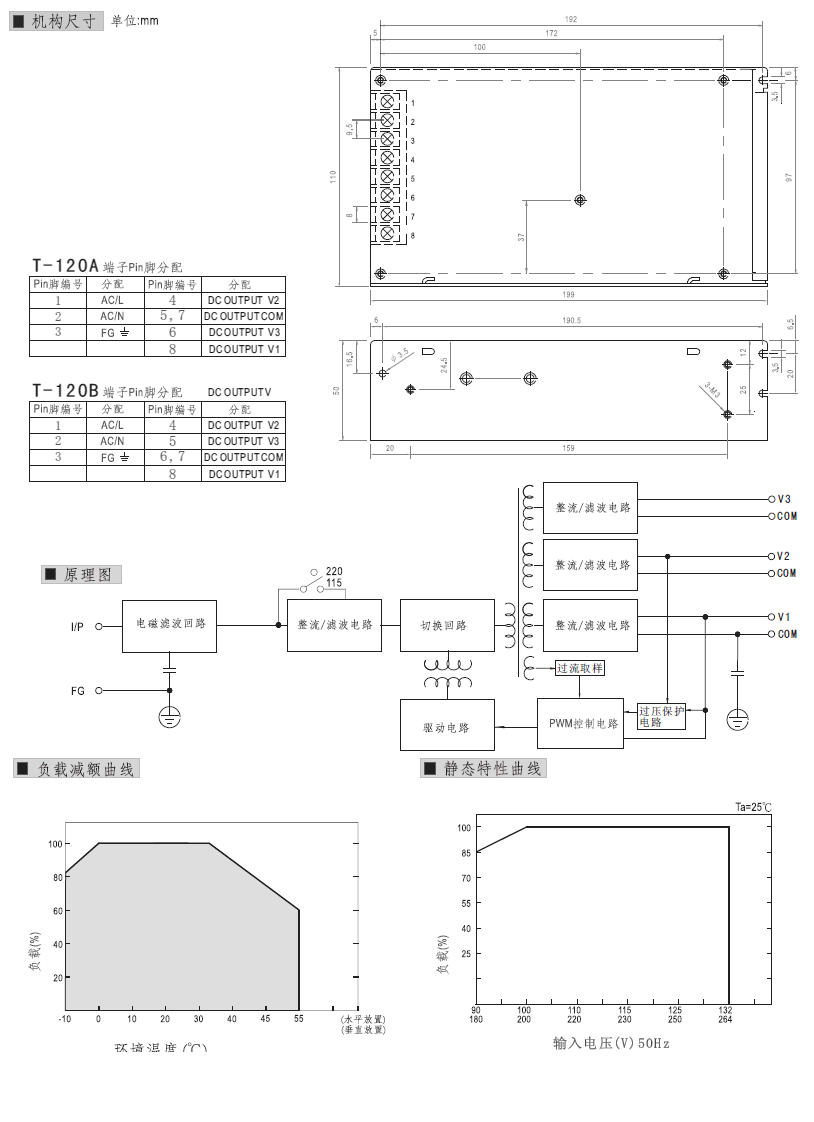

Shape dimension | 199×110×50mm | |||||
weight | 0.83kgs | |||||
Safety standards | Meet the UL1012 requirements (not applied for mark) | |||||
EMC mark | Meet the FCC part 15 J condition grade B | |||||
comments | 1. The above parameters test conditions for: 230 VAC, rated load, 25 ℃ and 70% Rh temperature. | |||||
2. Tolerance: include setting tolerance, the line stability, load stability (note 5). | ||||||
3. Corrugated test: 20 MHz A12 "with" twisted-pair with 0.1, interrupt them through programs and 47 uF capacitance breaker. | ||||||
4. Into line voltage stability test: full load into line voltage to the lowest highest voltage. | ||||||
5. Load stability test: the load from 0% to 100%. |
