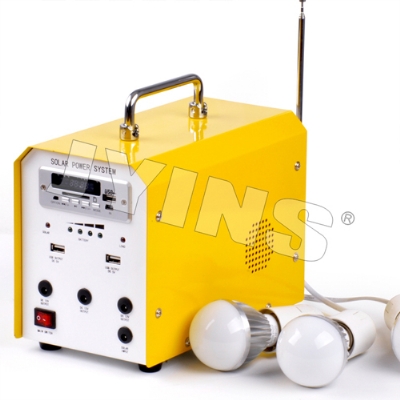

PRODUCT FEATURES
Integrated design for powering lighting device,5V digital product,MP3 display and FM radio.
High efficient PWM charging technology, intelligent management of battery's charging and discharging.
Small volume, low weight and easy to carry.
It can be charged by both by solar energy and city electricity.
SPECIFICATIONS
| Item | JYPS205 | JYPS206 | ||
| Solar Panel | 18V/10W(mono/poly) | 18V/50W (mono/poly) | ||
| Lead-acid Battery) | 12V/7AH*1Pcs Deep Cycle Free Maintenance |
12V/14AH*1Pcs Deep Cycle Free Maintenance |
||
| Adapter | Optional | |||
| Controller | PWM 12V/5A | |||
| Output Voltage | DC12V5A, USB5V1A | |||
| Charging Mode | PV Charging | |||
| Charging Time | 7.5H by 10W Solar Panel with Sufficent Sunlight; 3.7H by 20W Solar Panel with Sufficent Sunlight |
5H by 30W Solar Panel with Sufficent Sunlight; 3H by 50W Solar Panel with Sufficent Sunlight |
||
| Operating Environment | 0-45℃ | |||
| System Case Size | 260*162*173 mm | |||
| Packing Size | 360*170*220mm | |||
| Net Weight | 4.2KG | 5.6KG | ||
| Standard Cable Spec. | 3M DC Cable+DC Connector | |||
| Battery External Expansion | Unsupportive | |||
Load Capacity
| Appliance | Spec(W) | Qty(PCS) | Working Hour(h) | Power Consumption(W.h) |
| MP3/FM | 5 | 1 | 8 | 40 |
| Mobile Phone | 5 | 2 | 2 | 20 |
| LED Bulb | 2 | 2 | 5 | 20 |
| Fan | 10 | 1 | 1 | 10 |
| Television | 25 | 1 | 1 | 25 |
| Total | 115 |
