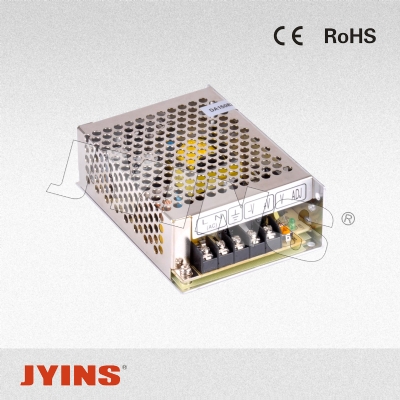

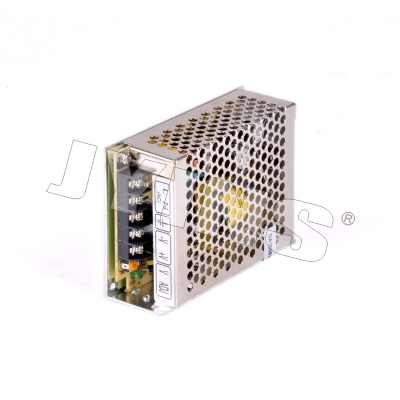

MS-60W

You are here: Home >> Industries & Products >> Switching power supply series >> Mini Size series >> MS-60W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

Had 170 ~ 264 VAC input voltage range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload

Had natural cooling

With that took on light emitting diode (led)

1 0, 0% had burned machine full load test

1 years had quality guarantee

Size: had 111 x 78 x 36 mm

Technical parameter:

model		MS-60-12	MS-60-15	MS-60-24
output	Dc output voltage	12V	15V	24V
	Output voltage tolerance	±1%	±1%	±1%
	Rated output current	5A	4A	2.5A
	Output current range	0～5A	0～4A	0～2.5A
	Output power	60W	60W	60W
	Ripple and the noise	100mVp-p	120mVp-p	120mVp-p
	Dc voltage adjustable scope	-9%～+10%	±10%	±10%
	Start, rise, keep time	600ms,30ms,20ms/230VAC
input	Input voltage range	170～264VAC 47～63Hz，235～373VDC
	Exchange input current	0.8A/230VAC
	efficiency	82%	82%	84%
	Impulse current	Cold start current 30A/230VAC
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	Protection way: hiccups mode, load abnormal conditions can be removed recovery

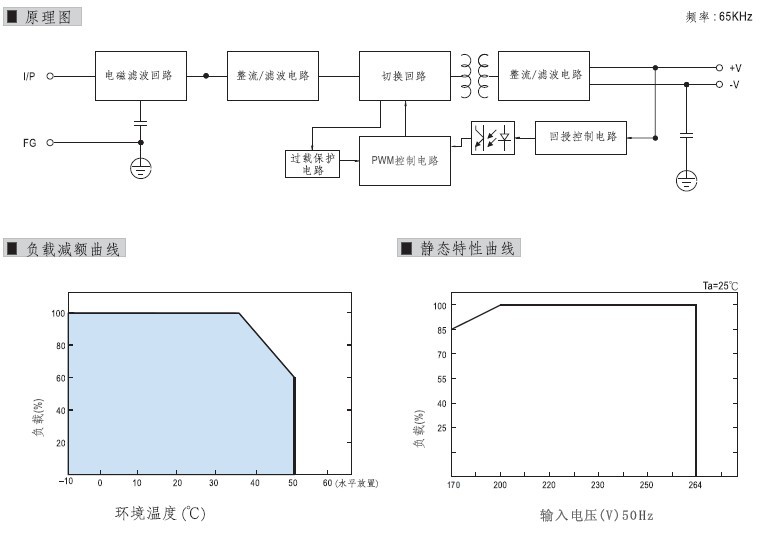

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC
	Insulation resistance	Between the input and output, the output and input: with ground: 100M Ohms/500VDC
standards	Safety standards	Accord with UL1012
	EMC standard	Accord with EN55022，CLASSA
other	weight	0.27kg 1117836（LWH）
	packaging	0.27kg/50pcs/14.5kg/0.9CUFT
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

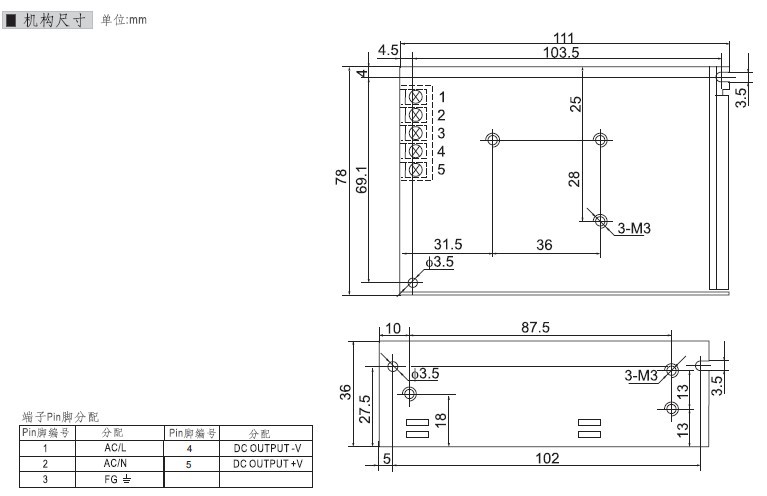

Installation dimensions:
