LPV-50W

You are here: Home >> Industries & Products >> Switching power supply series >> LED Wateproof Series >> LPV-50W

	Add to Inquiry Basket
	View Inquiry Basket
	Print This Page
	Bookmark This Page

	cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
	cnjyins01 cnjyins02 cnjyins03 cnjyins04
	jyins@jyins.com
	Send Inquiry
	Catalogue Download

Features:

vice rated voltage mode power supply

Had 170 ~ 264 VAC input range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

Meet the IP67 miscalculates level

Had 100% full load test machine and

Had 2 years quality assurance

Size: 190 x 48 x 38 mm

Technical parameter:

model		LPV-50-12	LPV-50-24	LPV-50-36
output	Dc output voltage	12V	24V	36V
	Output voltage tolerance	±3%	±3%	±3%
	Rated output current	4.2A	2.1A	1.4A
	Output current range	0-4.2A	0-2.1A	0-1.4A
	Output power	50.4W	50.4W	50.4W
	Ripple and the noise	100mVp-p	150mVp-p	180mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep	500ms,20ms,24ms/230VAC.800ms,30ms,20ms/115VAC
input	Input voltage range	90～264VAC 47～63Hz，126～373VDC
	Exchange input current	1.3A/115VAC 0.65A/230VAC
	efficiency	82%	84%	85%
	Impulse current	Cold start current 35A/230VAC
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	Protection way: hiccups mode, load abnormal conditions can be removed recovery

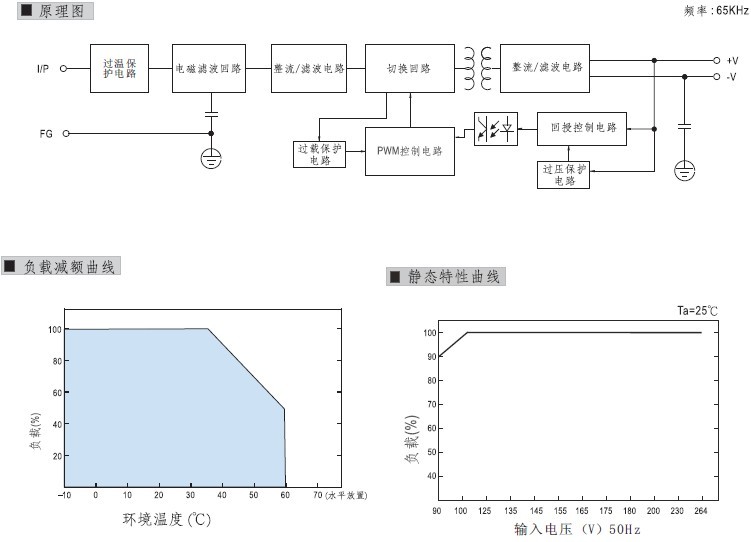

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	Between input and output ：1.5KVAC
	Insulation resistance	Between input and output ：100M Ohms/500VDC
Standards	Safety standards	Accord with UL1012
	EMC standard	Accord with EN55022，CLASSA
other	weight	0.6kg 1904838（LWH）
	packaging	0.6kg/30pcs/19kg
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope with 1 to 2 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

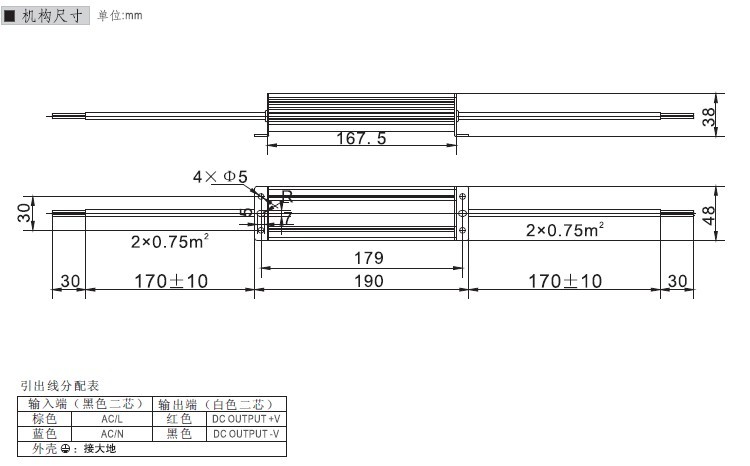

Installation dimensions:
