Features:

vice rated voltage mode power supply

Had 170 ~ 264 VAC input range

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

Meet the IP67 miscalculates level

Had 100% full load test machine and

Had 2 years quality assurance

Size: 182 x had 30 x 20 mm

Technical parameter:

model		LPV-30-12	LPV-30-24	LPV-30-36
output	Dc output voltage	12V	24V	36V
	Output voltage tolerance	±1%	±1%	±1%
	Rated output current	2.5A	1.3A	0.8A
	Output current range	0-2.5A	0-1.3A	0-0.8A
	Output power	30W	31W	29W
	Ripple and the noise	100mVp-p	100mVp-p	150mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep time	800ms,20ms,24ms/230VAC
input	Input voltage range	170～264VAC 47～63Hz，235～373VDC
	Exchange input current	0.42A/230VAC
	efficiency	78%	80%	82%
	Impulse current	Cold start current 30A/230VAC
	Leakage current	＜0.5mA/240VAC
Protection characteristics	Overload protection	Protection way: hiccups mode, load abnormal conditions can be removed recovery

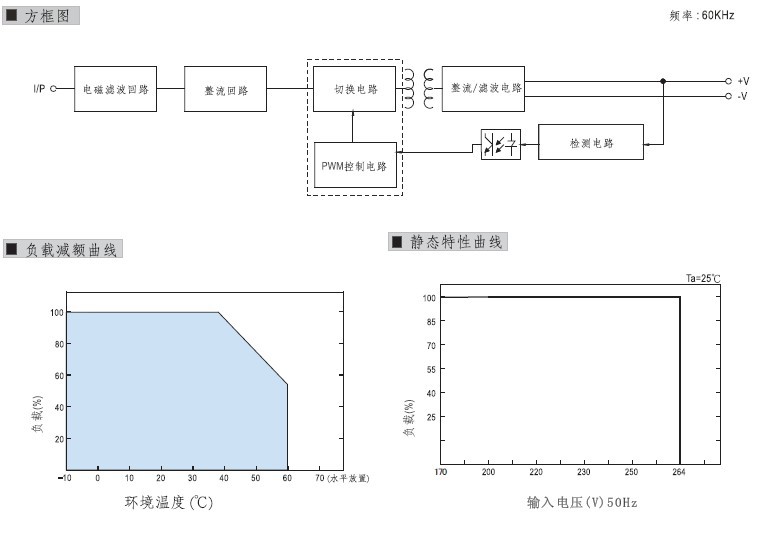

environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve )
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis
security	Compression sex	Between input and output ：1.5KVAC
	Insulation resistance	Between input and output ：100M Ohms/500VDC
Standards	Safety standards	Accord with UL1012
	EMC standard	Accord with EN55022，CLASSA
other	weight	0.25kg 2223020（LWH）
	packaging	0.25kg/80pcs/21kg
note	1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

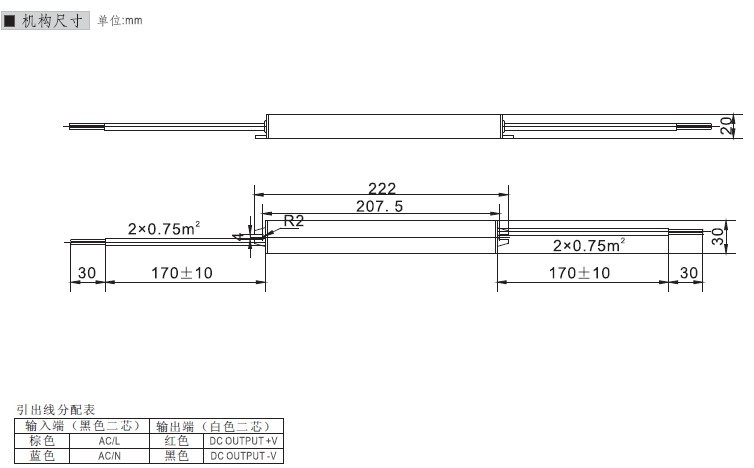

Installation dimensions:
