Features:

vice rated voltage mode power supply

International general had full scope

Had small volume, light weight, high efficiency

Characteristics: short circuit protection miscalculates/overload/pressure/thermal

Had air cooling

I had to meet 6 7 P level

1 0, 0% had burned machine full load test

Had 2 years quality assurance

Size: had 180 x 69 x 43 mm

Technical parameter:

model		LPV-80-12	LPV-80-24	LPV-80-36
output	Dc output voltage	12V	24V	36V
	Output voltage tolerance	±3%	±3%	±3%
	Rated output current	6.6A	3.3A	2.5A
	Output current range	0-6.6A	0-3.3A	0-2.5A
	Output power	80W	80W	80W
	Ripple and the noise	80mVp-p	100mVp-p	100mVp-p
	Dc voltage adjustable scope	±10%	±10%	±10%
	Start, rise, keep time	600ms,20ms,24ms/230VAC.1000ms,30ms,20ms/115VAC
input	Input voltage range	90～264VAC 47～63Hz，126～373VDC
	Exchange input current	2A/115VAC 1A/230VAC
	efficiency	80%	82%	84%
	Impulse current	Cold start current 35A/230VAC
	Leakage current	＜1mA/240VAC
Protection characteristics	Overload protection	Protection way: hiccups mode, load abnormal conditions can be removed recovery
environment	Working temperature, humidity	-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve)
	Keep temperature, humidity	-20℃～+85℃;10%～95%RH No condensation
	Vibrate resistance	10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis
security	Compression sex	Between input and output ：1.5KVAC
	Insulation resistance	Between input and output ：100M Ohms/500VDC
Standards	Safety standards	Accord with UL1012
	EMC Standard	Accord with EN55022，CLASSA
other	weight	0.9kg 1806943（LWH）
	packaging	0.9kg/20pcs/19kg/0.9CUFT
note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
	2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope with 1 to 2 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
	3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

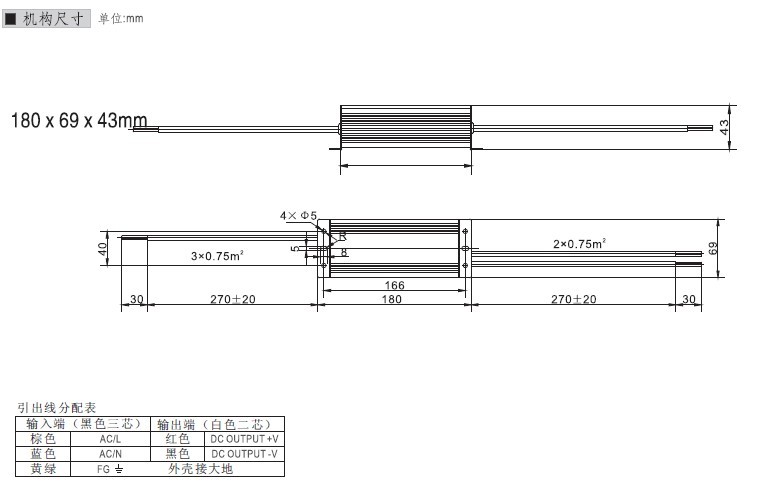

Installation dimensions:
