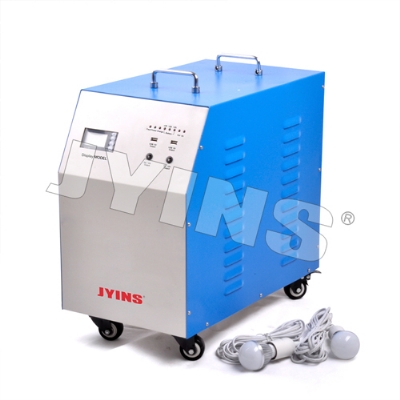

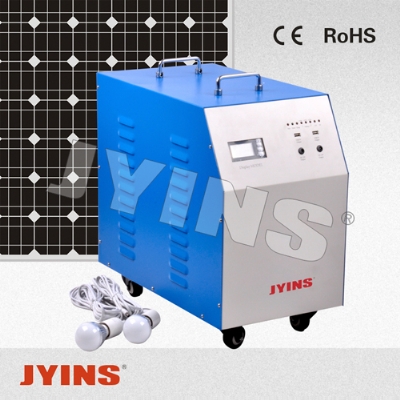

S136 Solar system

Add to Inquiry Basket
View Inquiry Basket
print this page Print This Page
bookmark this page Bookmark This Page
tell a friend
live messenger cnjyins01@hotmail.com cnjyins02@hotmail.com cnjyins03@hotmail.com cnjyins@hotmail.com
skype me cnjyins01 cnjyins02 cnjyins03 cnjyins04
e-mail us jyins@jyins.com
Send Inquiry Send Inquiry
catalogue download Catalogue Download

 PRODUCT ADVANTANGES

With integrated design,all components are put together in one box. Provide the electricity for home appliances, DC 12V LED bulb, USB 5V digital product etc.

High efficient PWM charing technology, intelligent management of battery's charging and discharging.

Intelligent LCD display panels generating data.

Large storage capacity, long life span, fast charging.

It can be charged by solar energy and normal city electricity.

The system with castor makes the machine easy to move.

SPECIFICATIONS

Item JYPS136 JYPS137
Solar Panel 18V/100W--200W (Mono/Poly) 18V/150W(mono/poly)
Lead-acid Battery 12V/65AH*1Pcs Deep Cycle Free
Maintenance
12V/100AH*1PCS Deep Cycle Free
Maintenance
Inverter Pure Sine Wave 300W
Controller PWM 12V/10A
Output Voltage AC220V, DC12V10A, USB5V1A
City Electricity
Switching Time
AC--DC:<10ms DC--AC:<10ms
Charging Mode PV Charging PV/City Electricity Charging
Charging time 100W solar power full sunlight is
about 6h;City Electricity charging
about 6.5h
200W solar power full sunlight isabout 4.5h; City Electricity chargingabout 6.5h
Operating Environment 0-45℃
System Case Size 528*300*438mm
Packing Size 640*420*580mm
Net Weight 37.4 KG 89.5 KG
Standard Cable Spec. 2*2.5 mm2 *10M&pass through*2 pairs 2*2.5 mm2*10M & pass through*2 pairs
&250V 10A three-pin 1.8M
Battery External Expansion Supportive
