Model and meaning

Products Description :

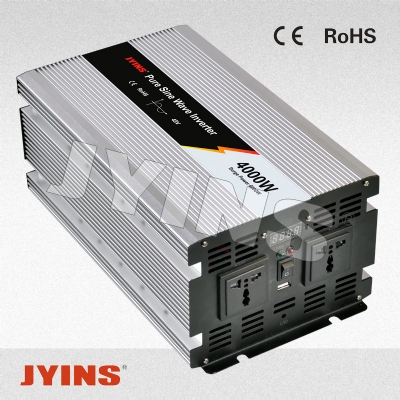

JYINS pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect JYINS 4000W pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility. And there is a remote control function and an ON/OFF remote switch with 5m communication wire is optional.
Products Features:
·Input & Output fully isolated.
·The remote control function and 5m wire with switcher optional.
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grouding earth protection: There is grounding terminal in front of panel, you can grounding the inverter for more safety concern.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grouning earth protection

Product parameters
