Features:
High efficiency, high reliability
For AC power supply input global
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
Has the boot display (light emitting diode (led)
Air cooling
Working frequency 54 KHz
1 year warranty

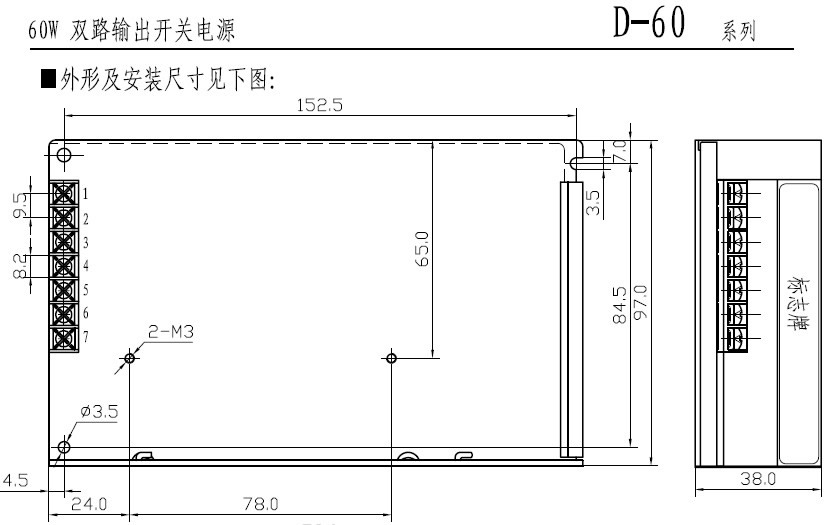

Size: 159 * 97 * 38 mm (L * W * H)
| model | D-60A | D-60B | |||
| CH1 | CH2 | CH1 | CH2 | ||
| output | Dc output voltage | 5V | 12V | 5V | 24V |
| Output voltage tolerance | ±2% | ±6% | ±2% | ±5% | |
| Rated output current | 4A | 3A | 3A | 1.8A | |
| Output current range | 0.3-6A | 0.2-4A | 0.3-6A | 0.2-2.2A | |
| Output power | 56W | 58W | |||
| Ripple and the noise | 75mVp-p | 150mVp-p | 75mVp-p | 150mVp-p | |
| Dc voltage adjustable scope | CH1： -5%，+10% | CH1： -5%，+10% | |||
| Start, rise, keep time | 300ms,50ms ,80ms/230VAC 800ms,50ms,10ms/115VAC Loaded with | ||||
| input | Input voltage range | 85～264 VAC/ 47～63 Hz； 120～370VDC | |||
| Exchange input current | 2A/115 V 1A/ 230 V | ||||
| efficiency | 73% | 76% | |||
| Impulse current | Cold start current | ||||
| 30A/115VAC 60A/230VAC | |||||
| Leakage current | ＜3.5mA/240VAC | ||||
| Protection characteristics | Overload protection | 105%～150% | |||
| Protection way: current limiting, automatic recovery | |||||
| Overvoltage protection | 115%~135% | ||||
| Protection way: hiccups, auto recovery mode | |||||
| environment | Working temperature, humidity | -10℃～+60℃；20%～90 %RH | |||
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH | ||||
| Vibrate resistance | 10 ~ 500 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis | ||||
| security | Compression sex | 3: KVAC between input and output input and ground: | |||
| 1.5KVAC Output and to | |||||
| ：0.5KVAC | |||||
| Insulation resistance | Between the input and output, the input and output, and ground: | ||||
| 100M Ohms/500VDC | |||||
| Standards | Safety standards | 符合UL1012 , UL60950 ,EN60950 | |||
| EMC standard | Accord with | ||||
| EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024 | |||||
| other | weight | 0.54Kg | |||
| packaging | 30pcs/16.7Kg/0.99CUFT | ||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. | ||||
| Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. | |||||
| Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. | |||||
| The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. | |||||

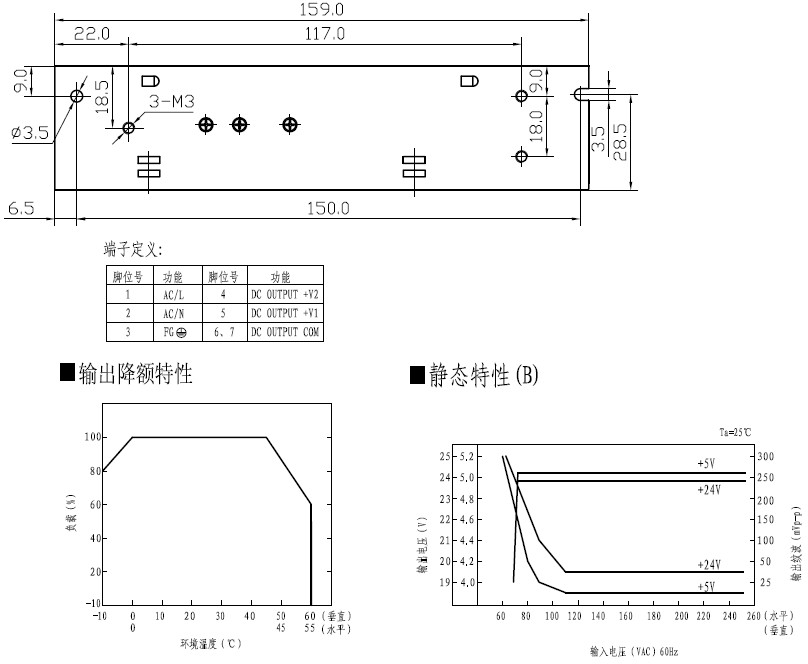

| Specific output current see output drop forehead curve. | |||||
