Introduction:

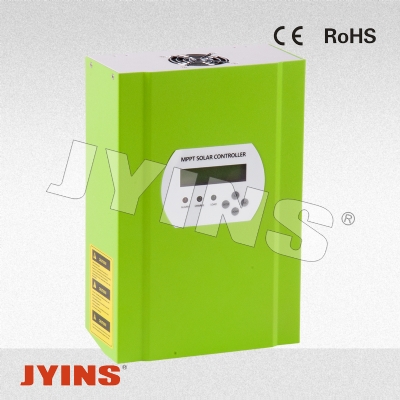

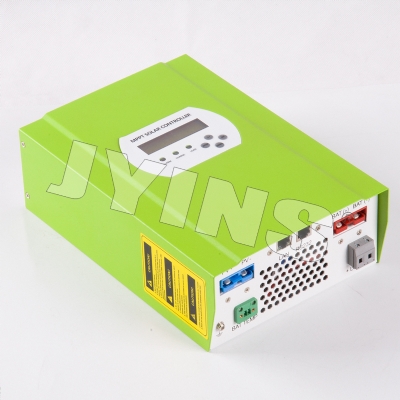

This is a smart solar charge controller which has advanced MPPT technology .Solar charge controller is one of the important parts in the off-grid solar system. For having the advanced MPPT technology, the controller can trace the peak power with 99% conversion efficiency. MPPT microprocessor, inside the controller，making 30% more charge current with significantly less power than tradition. In addition to this, easier installing and supporting to expand volume are other advantages. It can also store energy to different kinds of batteries. We provide battery choice(Vented、Sealed、Gel、NiCd).

Feature:

1.MPPT charge mode,conversion efficiency upto 99%,can save 30%~60% of the power than traditional controller.

2.With high efficient MPPT operation scheme and adopting TI28035 chip,make the Solar panels utilization rate upto 99%.

Intelligent design,the device can be upgraded online,customers enjoy the lifelong upgrade service.

4.Compliance with the 2002/95/EC environment protecting demand,doesn’t include the Cadmium, hydride and fluoride

5.Adopting the well-known brand components,the devices can suffer the temperature not less than 105℃.The service life is designed to extend to 10 years in theory.

6.Charge mode: three stages (fast charge,constant charge,floating charge)

7.12V/24V/48V system auto recognize for easy control.

8.Nominal maximum solar input is DC 150V

9.Connected Battery Type choosing: Sealed lead acid, vented, Gel, NiCd battery. Other types of the batteries can also be defined.

10. LCD and LEDs show all kinds of parameter like products model, PV input voltage,battery voltage,charge current,charge power,work condition,and also can add customers’company name and website.

11. Communication Port.RS232 communication can provide communication protocol, This make the unified and integrated management more convenient to customers.

12. With providing a Microsoft by connecting with PC that can show the working state and all parameters in 7 languages.

13. Extensible LAN remote control.

14.Equipment integrity: controller+CD-ROM(microcomputer software) + communication wire+Anderson terminals;

15.CE,ROHS,FCC,PSE certifications approved.The device also can support to pass the other certifications.

16. 2 years warranty. And 3~10 years extended warranty service also can be provided.

Parameter:

Model:J-Y-MSC-DC12V/24V/48V-series				40A	50A			60A
Charge Mode	Maximum Power Point Tracking
Method	3 stages: fast charge(MPPT),constant voltage,floating charge
System Type	DC12V/24V/48V		Automatic recognition
System Voltage	12V system		DC9V~DC15V
	24V system		DC18V~DC30V
	48Vsystem		DC36V~DC60V
Soft Start Time	12V/24V/48Vsystem		≤10S
Dynamic Response Recovery Time	12V/24V/48Vsystem		500us
Conversion Efficiency	12V/24V/48Vsystem		≥96.5%,≤99%
PV Modules Utilization Rate	12V/24V/48Vsystem		≥99%
Input Characteristics
MPPT Working Voltage and Range	12V system		DC18V~DC150V
	24V system		DC34~DC150V
	48V system		DC65~DC150V
Low Voltage Input ProtectionPoint	12V system		DC16V
	24V system		DC30V
	48V system		DC60V
Low Voltage Input RecoveryPoint	12V system		DC22V
	24V system		DC34V
	48V system		DC65V
Max DC Voltage	12V/24V/48Vsystem		DC160V
Input Overvoltage Protection Point	12V/24V/48Vsystem		DC150V
Input Overvoltage Recovery Point	12V/24V/48Vsystem		DC145V
Max. PV Power	12V system		570W			700W	900W
	24V system		1130W			1400W	1700W
	48V system		2270W			2800W	3400W
Output Characteristics
Selectable Battery Types(Default type is GEL battery)	12V/24V/48Vsystem		Sealed lead acid, vented, Gel, NiCd battery (Other types of the batteries also can be defined)
Constant Voltage	12V/24V/48Vsystem		Please check the charge voltage according to the battery type form.
Floating Charge Voltage	12V/24V/48Vsystem
Over Charge Protection Voltage	12V system		14.6V
	24V system		29.2V
	48V system		58.4V
Rated Output Current	12V/24V/48Vsystem		40A			50A	60A
Current-limiting Protection	12V/24V/48Vsystem		44A			55A	66A
Temperature Factor	12V/24V/48Vsystem		±0.02%/℃
Temperature Compensation	12V/24V/48Vsystem		14.2V-(The highest temperature-25℃)*0.3
Output Ripples(peak)	12V/24V/48Vsystem		200mV
Output Voltage Stability Precision	12V/24V/48Vsystem		≤±1.5%
Display
LCD display			Input,output parameter and output power etc (check the LCD display instruction)
LED display			3 LEDs indicates:Fault indicate light,charge indicate light,power source indicate light(check the LED instruction)
Software Control through PC(communication port)			RS232 (matching) or LAN(optional)
Protection
Input Low Voltage Protection			Check the input characteristics
Input Overvoltage Protection			Check the input characteristics
Input Polarity Reversal Protection			yes
Output Overvoltage Protection			Check the output characteristics
Output Polarity Reversal Protection			yes
Short-circuit Protection			Recover after eliminating the Short-circuit fault,no problem for long term Short-circuit
Temperature Protection			95℃
Temperature protection			Above 85℃,decrease the output power,decrease 3A per degree.
Other Parameters
Noise			≤40dB
Thermal methods			Forced air cooling,fan speed rate regulated by temperature,when inner temperature is too low,fan ran slowly or stop;when controller stop working,fan also stop ran.
Components			World brand raw materials. Compliance with EU standards.All rated temperature ofelectrolytic capacitors not less than 105℃
Smell			No peculiar smell and and toxic substances.
Environment Protection			Meet the 2002/95/EC,no cadmium hydride and fluoride
Physical
Measurement DxWxH(mm)			27018590
N.G(kg)			3
G.N(kg)			3.6
Color			Blue/Green (optional)
Safety			CE,RoHS, PSE,FCC
EMC			EN61000
Type of Mechanical Protection			IP21
Environment
Humidity		0~90%RH ( no condense)
Altitude		0~3000m
Operating Temperature		-20℃ ~ +40℃
Storage Temperature		-40℃ ~ +75℃
Atmospheric Pressure		70~106kPa
