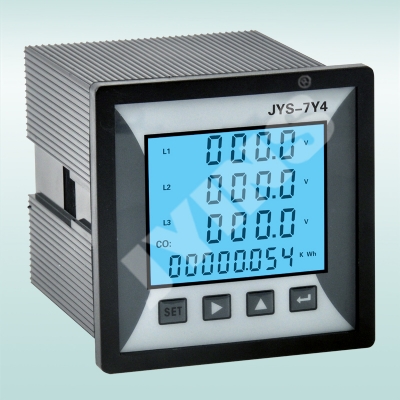

Model and meaning:

  Product parameters:

Measurable voltage: AC 100V、200V、380V  Overload: 1.2 times rated for continuous, and 2 times rated for 10s. Power consumption: <0.1VA/phase Measurable current: AC；1A、5A Auxiliary power supply: AC/DC； 80V-270V.

Product functions:

Measurement: three-phase voltage, three-phase current, active power, reactive power, power factor, frequency, active energy, reactive energy. Calculation: positive and negative active energy, inductive and capacitive reactive power. Display: LCD display with STN blue screen, wide viewing angle, high quality and high definition. Communication: RS485 communication, and MODBUS-RTU protocol. Output: two-way power pulse output, four-way switch output, and four-way analog output. Input: four-way switch input.  Expansion: can directly receive signals from the current or voltage transformers, and can be set input parameters ratio as field programmed. Uses: suitable for complete monitoring and management of electrical parameters in a variety of line circuits and high-capacity electrical circuits. Time aging: all the products have been time-aged, so that it can stably work in a long-term to reduce the impact of external environment on the meter, offering users a satisfactory product.

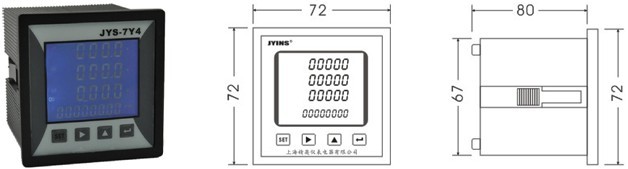

Overall diagram and Entrance size

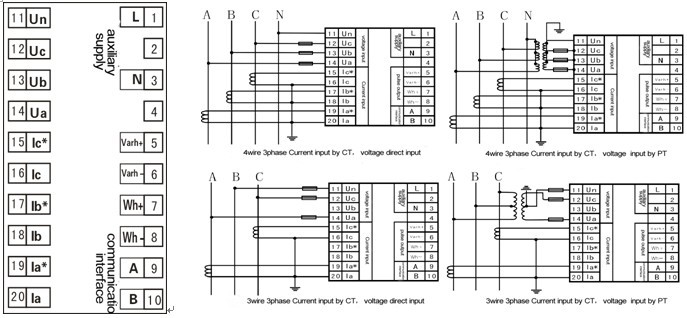

Connection diagram

Note：If have any difference with the connection diagram on the meter ,using the that one as the correct one.
