Model and meaning:

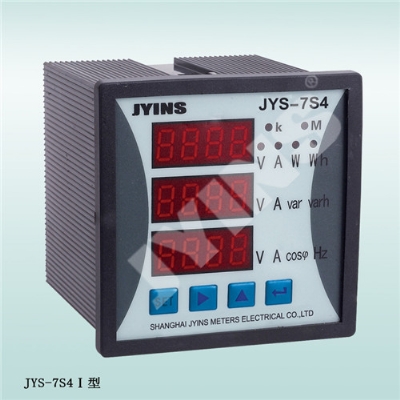

Product overview:

JYS (PD1006-1) multi-functional power meter can highly precisely measure the general power parameters in three-phase grid system: three-phase voltage, three-phase current, active power, reactive power, power factor, line frequency, active energy, reactive energy. It also has the function of communication interface and electrical pulse output. With the communication protocols, it is able to give LED display on-site and remote-site communications. The multi-functional power meter is convenient to install, easy to wire, and simple to maintain. It has few projects and can be set input parameters as field programmed. And it can communicate with different PLC and industrial computers in the network.

Product parameters:

Measurable voltage: AC 100V、200V、380V overload: 1.2 times rated for continuous, and 2 times rated for 10s. Power consumption: <0.1VA/phase Measurable current: AC；1A、5A Auxiliary power supply: AC/DC； 80V-270V.

Product functions:

Measurement: three-phase voltage, three-phase current, active power, reactive power, power factor, frequency, active energy, reactive energy. Calculation: positive and negative active energy, inductive and capacitive reactive power. Display: three row LED digital tube display, with high visibility. Communication: RS485 communication, and MODBUS-RTU protocol. Output: two-way power pulse output (pulse constant is 3200imp/kwh). Expansion: can directly receive signals from the current or voltage transformers, and can be set input parameters ratio as field programmed. Uses: suitable for complete monitoring and management of electrical parameters in a variety of line circuits and high-capacity electrical circuits. Time aging: all the products have been time-aged, so that it can stably work in a long-term to reduce the impact of external environment on the meter, offering users a satisfactory product.

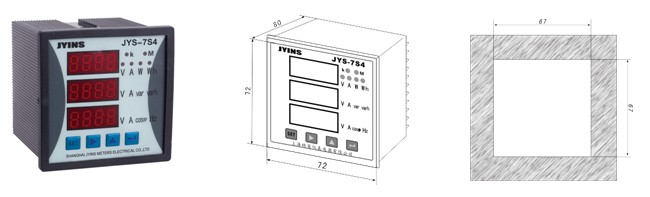

Overall diagram and

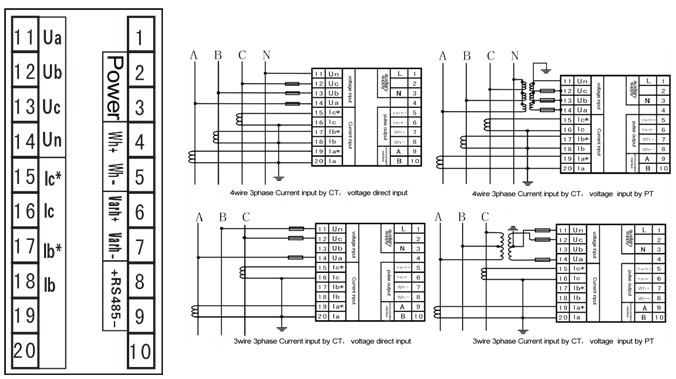

Connection diagram

Note：If have any difference with the connection diagram on the meter ,using the that one as the correct one.

Entrance size
