Model and meaning

technical parameters

voltage imput：AC 100V,200V,380V

overload：1.2 times rated value（continuously ），2 times rated value （10s）

power consumption：＜0.1VA（per phase）

current imput：AC 1A,5A。

overload：1.2 times rated value（continuously ），2 times rated value （10s）

power consumption：＜0.1VA（per phase）

auxiliary power：AC/DC 80-270V

power consumption：＜5VA

external form & hole-cutting size：120x120mm  112x112mm

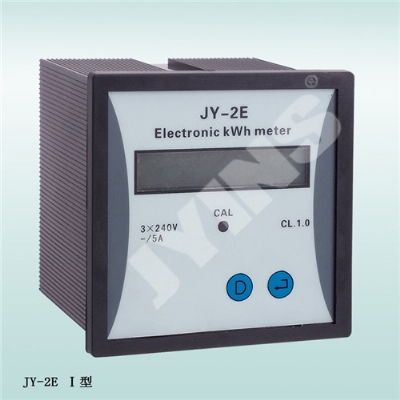

product presentation：

adopt blue backlit LCD display，can display common power quantity and other parameters.meter's power quantity parameters display is actual value once measued of PT ,CT（means：V＝PT*imput V，A ＝ CT*imoutA ，display P ＝power value*PT*CT）.can swithover display voltage by panel's switch key（now the first display indicator lighting）the first row ，the second row ，the third row LED display separately represent UA,UB,UC or UAB,UBC,UCA.it's unit is V .indicator K or M lignting means KV&MV.display current （now the second display indicator lighting ）the first row ，the second row ，the third row LED display separately represent IA,IB,IC.it's unit is A.indicator K or M lighting means KA&MA.display power （now the second display indicator lighting）the first row ，the second row ，the third row LED display separately represent P,Q,COSФ,it's unit is  W,Var.indicator K or M lighting means Kw,KVar & Mw,Mvar.energy display adopt the first and second row LED display （as the first display 278.1　the second display 5995,the energy is 278.1599）
