TROUBLE SHOOTING

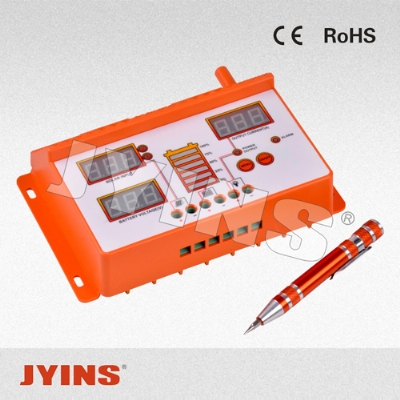

| Models | FZ10A | FZ15A | FZ20A | FZ30A | FZ40A | FZ45A | FZ50A |
| Input Voltage | 12、24V (Automatic recognition) | ||||||
| Rated Charging Curent | 10A | 15A | 20A | 30A | 40A | 45A | 50A |
| Rated Discharging Curent | 10A | 15A | 20A | 30A | 40A | 45A | 50A |
| Protect Action | Overload.short circuit protection action≥3s，rated coltage of short circuit protection 1.1s，rated current will be delay to turn off in 10s | ||||||
| Voltage Drop | The charging voltage drop≤0.2V | ||||||
| The discharging voltage drop≤0.1V | |||||||
| Overvoltage Protection | 14.8V（12V）/29.6V（24V） | ||||||
| Over Discharge Voltage | 10.5V（12V）/21V（24V） | ||||||
| Over Discharge Recovery | 12.5V（12V）/25V（24V） | ||||||
| Working Tempertaure | -20~55℃ | ||||||
| Dimesion | 155x107x41mm | 195x134x56mm | |||||
| Net Weight | 270g | 530g | |||||
