PRODUCT INTRODUCTION

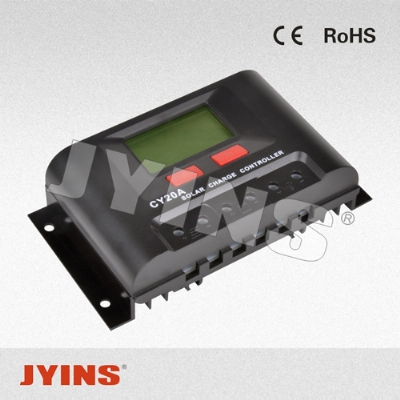

The PR  series  charge controllers is the highlight in the range.

Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring for up to 2880 Wp of connected power. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display..

Integrated data logger energy meter                       Automatic detection of voltage

PWM control                                                        Multistage charging technology

Automatic load reconnection                                  Temperature compensation

Overcharge protection                                           Deep discharge protection

Reverse polarity protection                                     Short circuit protection of load

Reverse current protection at night                         Load disconnection on battery overvoltage

INSTALLATION

Only install the regulator near the battery on a suitable surface. This surface should be solid, stabile, even, dry and nonflammable.

The battery cable should be as short as possible and have a suitable cable diameter size to minimize loss, e.g. 4 mm² at 20 A and  2m length.

Do not install the controller to direct sunlight.

If the solar battery will be operated under a large temperature range (winter/summer) the external temperature sensor should be used. A temperature compensated final charge voltage will extend the batteries lifetime and uses the optimum charge capacity.

To ensure the air confection on each side keep a distance of 10 cm to the regulator. The temperature at the installation site may never fall below or exceed the maximal permitted ambient temperature.

Connect the individual components to the symbols provided.

Observe the following connection sequence during commissioning:

1.  Connect the battery to the charge regulator - plus and minus

2. Connect the photovoltaic module to the charge regulator - plus and minus

3.  Connect the consumer to the charge regulator - plus and minus

The reverse order applies when deinstalling!

Please observe that the automatic adjustment to 12V/24V systems does not function properly,if this sequence order is not followed. An improper sequence order can damage the battery!

TECHNICAL DATASHEET

*Product specifications are subject to change without prior notice
